| Brand Name: | Realkey |
| Model Number: | RKSORT-CBS |
| MOQ: | 1 unit |
| Price: | Customized products |
| Payment Terms: | L/C,T/T,D/P |
| Attribute | Value |
|---|---|
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Flexible sorting of multiple sizes and directions |

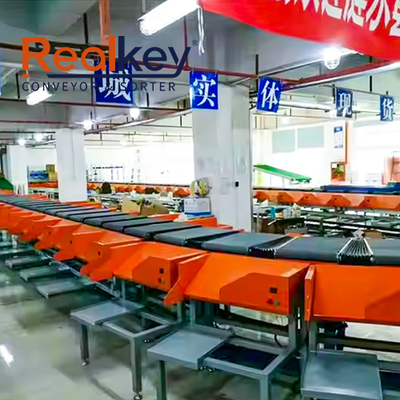

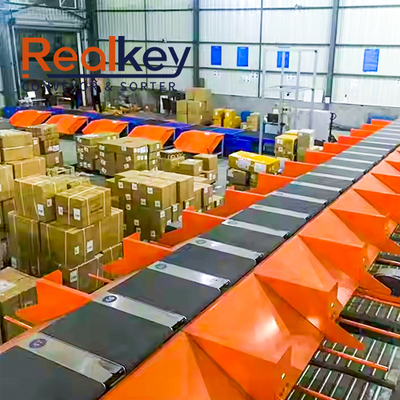

The Realkey Cross Belt Sorter is a high-performance logistics system designed to automate parcel and carton sorting with accuracy and speed. Built around a modular framework, it integrates rail tracks, smart carts, perpendicular conveyor belts, and advanced recognition systems. Each cart--connected in a continuous loop--features a crosswise belt that activates at the correct drop point, ensuring precise and efficient delivery. Items can be loaded manually or through automated feeding systems.
Available in both looped (circular) and linear configurations, the system adapts to a variety of sorting environments. Circular models process up to 22,000 units per hour at a speed of 2 m/s, while linear formats sort around 8,000 units per hour at 1.5 m/s. These capabilities make the sorter an excellent fit for industries like courier and express delivery, online retail, fashion, food logistics, healthcare, cosmetics, and airport cargo handling.
| Equipment Name | Circular Cross Belt Sorter | Linear Cross Belt Sorter | Linear Cross Belt Sorter |
|---|---|---|---|
| Model | CBS-600C | CBS-500L | CBS-300L |
| Sorted Items | Various parcels, cartons, clothing, books, etc. | ||
| Cart Pitch | 600mm | 500mm | 300mm |
| Sorting Accuracy | 99.99% | ||
| Sorting Efficiency | 22,000 pcs/hour | 6,000 pcs/hour | 8,000 pcs/hour |
| Feeding Method | Manual loading /Automatic loading from feeding station | ||
| Sorted Goods Size | MAX: 700×600×500mm MIN: 150×150×8mm |
||
| Scanning Method | Top scan / Three-phase five-sided scan / Six-sided scan | ||
| Sorted Goods Weight | 0.03kg ≤ W ≤ 20kg | 0.03kg ≤ W ≤ 20kg | 0.1kg ≤ W ≤ 30kg |
| Operating Speed | 2.0m/s | 1.5m/s | 1.5m/s |
| Operating Noise | ≤72dB(A) | ||
Realkey's cross belt sorters are widely used in regional depots, transfer hubs, and central processing centers. Linear systems, in particular, are valued for their space-saving footprint and layout flexibility, helping organizations reduce labor dependency and improve processing flow.
E-commerce growth, especially during high-demand seasons, requires adaptable solutions. Realkey's sorters are built to handle a wide range of product categories--from fashion and personal care to infant products and consumer goods--making them a core component of scalable distribution strategies.
When equipped with optional vision systems, the sorter continuously monitors cart performance in real time. Malfunctioning units are automatically identified and removed from the line. Instant notifications minimize unplanned interruptions (automated feeding required).
Intelligent software dynamically assigns single carts for compact items and dual carts for oversized parcels up to 1.2 meters. This flexibility eliminates the need for physical reconfiguration while maximizing throughput and resource use.
Through the operator interface, maintenance can be scheduled and executed automatically. Carts are rerouted to service bays as needed, reducing technician workload and minimizing downtime.
With over 18 years in the logistics automation space, Realkey offers proven, long-lasting equipment trusted by industry leaders. Every system is built to deliver consistent performance and dependable uptime in demanding operational settings.
Equip your regional hub with Realkey's Cross Belt Sorter--an intelligent, scalable solution that enhances sorting speed, reduces manual labor, and supports long-term operational growth.
