Professional Loop Cross Belt Sorter Designed To Enhance Sorting Accuracy And Operational Efficiency In Warehousing

Professional Loop Cross Belt Sorter Designed To Enhance Sorting Accuracy And Operational Efficiency In Warehousing

Brand Name:	Realkey
Model Number:	RKSORT-CBS
MOQ:	1 unit
Price:	Customized products
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Flexible Sorting Of Multiple Sizes And Directions

Special Feature:

12000 To 15000 Tickets/hour

Speed:

Adjustable Within The Range Of 2.0-2.5m/S

Warranty:

1 Year

Dimension(L*W*H):

Customization

Recognition Rate:

99.99%

Certification:

CE/ROHS/ISO9001/ECM

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Other, Logistics Transportation Sorting

Material Feature:

Fire Resistant

Aftersales Support:

Install Instruction, Video Support, On-line Guidance

After-sales Service Provided:

Online Support Video Technical Support

Sorting Cargo Maximum Size:

700×600×500mm

Sorting Cargo Minimum Size:

150×150×8mm

Sorting Weight:

0.03kg ≤ W ≤ 30kg

Structure:

Belt Conveyor

Highlight:

Warehousing Cross Belt Sorter

Professional Loop Cross Belt Sorter

Enhance Accuracy Cross Belt Sorter

Product Description

Professional Loop Cross Belt Sorter

Designed to enhance sorting accuracy and operational efficiency in warehousing operations.

Product Specifications

Custom Order	Accepted
OEM/ODM	Accepted
Factory	Direct Factory With Own Exporting Platform
Special Feature	12000 to 15000 tickets/hour
Speed	Adjustable within 2.0-2.5m/S
Warranty	1 Year
Recognition Rate	99.99%
Certification	CE/ROHS/ISO9001/ECM
Material Feature	Fire Resistant
After-sales Support	Install instruction, video support, on-line guidance

Product Overview

The Realkey Cross Belt Sorter is a state-of-the-art system engineered for seamless sorting of parcels and cartons. It combines tracks, carts, cross-aligned belts, recognition, and communication technologies into a streamlined solution.

Carts, connected in a continuous loop, feature perpendicular belts—hence "Cross Belt"—to transport items, loaded manually or automatically. At sorting zones, belts trigger to deliver items with precision.

Technical Parameters

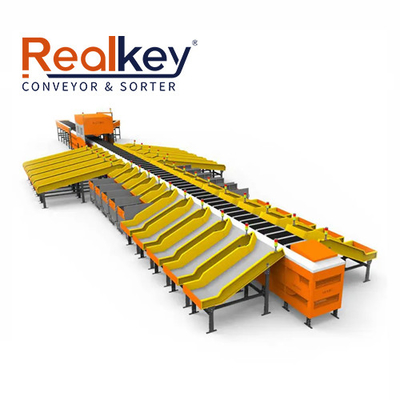

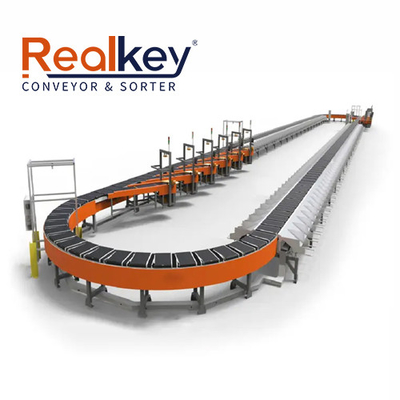

Equipment Name	Circular Cross Belt Sorter	Linear Cross Belt Sorter	Linear Cross Belt Sorter
Model	CBS-600C	CBS-500L	CBS-300L
Sorting Efficiency	22,000 pcs/hour	6,000 pcs/hour	8,000 pcs/hour
Operating Speed	2.0m/s	1.5m/s	1.5m/s
Sorted Goods Weight	0.03kg ≤ W ≤ 20kg	0.03kg ≤ W ≤ 20kg	0.1kg ≤ W ≤ 30kg

Key Features

Mature and Reliable

Optimized for small to medium parcels, supporting a wide range of weights and volumes common in express and e-commerce logistics.

High Applicability

Delivers consistent performance sorting cartons, envelopes, apparel, film-wrapped goods, and more with customizable specs.

Simple Loading Operations

Allows manual loading or automated platforms for scanning, weighing, and loading with minimal training required.

Cost-Efficient Operations

High sorting efficiency reduces operator workload and lowers labor expenses while accelerating business growth.

Industry Applications

Postal and Express Delivery: Regional hubs and transfer centers with heavy sorting volumes
E-Commerce and Global Trade: Clothing, electronics, baby goods, supermarkets, and pharmaceuticals
Building Material Shops and Manufacturing Plants
Food & Beverage Factory and Construction works

Advanced Technologies

Intelligent Vision Systems for live cart monitoring and error prevention
Enhanced Cart Linkage Technology for flexible parcel handling
Automated Maintenance Management to minimize manual intervention
Proven Durability with 18 years of logistics automation expertise
