High Speed Cross Belt Sorting Line Conveyor Sorting System For Distribution Warehouse

High Speed Cross Belt Sorting Line Conveyor Sorting System For Distribution Warehouse

Brand Name:	Realkey
Model Number:	RKSORT-CBS
MOQ:	1 unit
Price:	Customized products
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Flexible Sorting Of Multiple Sizes And Directions

Special Feature:

12000 To 15000 Tickets/hour

Speed:

Adjustable Within The Range Of 2.0-2.5m/S

Warranty:

1 Year

Dimension(L*W*H):

Customization

Recognition Rate:

99.99%

Certification:

CE/ROHS/ISO9001/ECM

Highlight:

Cross Belt Sorting Line Conveyor

ECM Cross Belt Sorting System

Warehouse Cross Belt Sorting Line Conveyor

Product Description

High Speed Cross Belt Sorting Line Conveyor Sorting System For Distribution Warehouse

Product Specifications

Custom Order

OEM/ODM

Factory

Direct Factory With Own Exporting Platform

Feature

Flexible sorting of multiple sizes and directions

Special Feature

12000 to 15000 tickets/hour

Speed

Adjustable within the range of 2.0-2.5m/S

Warranty

1 Year

Dimension(L*W*H)

Customization

Recognition rate

99.99%

Certification

CE/ROHS/ISO9001/ECM

Product Overview

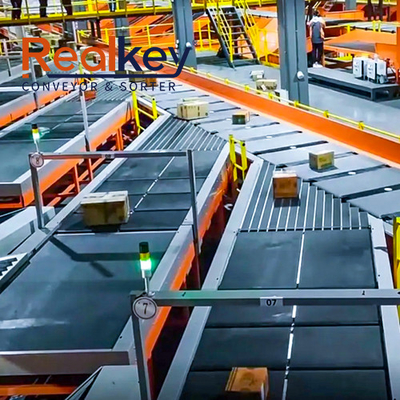

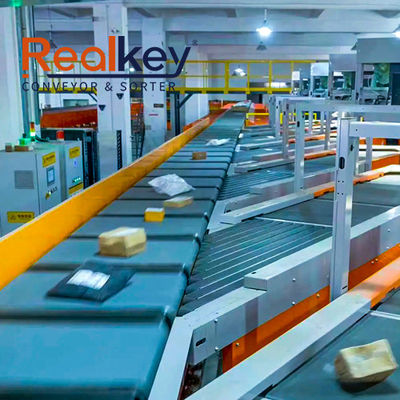

The Realkey Cross Belt Sorter is a state-of-the-art system built for efficient sorting of parcels and cartons. It integrates tracks, carts, cross-aligned belts, recognition, and communication technologies into a unified solution. Carts connected in a continuous chain use perpendicular belts to transport items, which can be loaded manually or automatically.

Technical Parameters

Equipment Name	Circular Cross Belt Sorter	Linear Cross Belt Sorter	Linear Cross Belt Sorter
Model	CBS-600C	CBS-500L	CBS-300L
Sorted Items	Various parcels, cartons, clothing, books, etc.
Cart Pitch	600mm	500mm	300mm
Sorting Accuracy	99.99%
Sorting Efficiency	22,000 pcs/hour	6,000 pcs/hour	8,000 pcs/hour
Feeding Method	Manual loading / Automatic loading from feeding station
Sorted Goods Size	MAX: 700×600×500mm MIN: 150×150×8mm
Scanning Method	Top scan / Three-phase five-sided scan / Six-sided scan
Sorted Goods Weight	0.03kg ≤ W ≤ 20kg	0.03kg ≤ W ≤ 20kg	0.1kg ≤ W ≤ 30kg
Operating Speed	2.0m/s	1.5m/s	1.5m/s
Operating Noise	≤72dB(A)

Key Features

Mature and Reliable

Optimized for small to medium parcels with wide weight and volume range, supporting express and e-commerce logistics needs. Multiple chute configuration ensures consistent performance with globally trusted technology.

High Applicability

Robust stability and high processing capacity for cartons, envelopes, apparel, plastic-wrapped items, and books. Customizable equipment specs and chute sizes (600mm to 1000mm) adapt to site requirements with modular cart tracks for flexible integration.

Simple Loading Operations

Supports both manual loading and automated platforms for scanning, weighing, and loading. Operators require minimal training for efficient workflow integration.

Modular Solutions

Standardized components and lightweight design accelerate production, transport, and assembly. Modular setup simplifies maintenance and enhances equipment uptime.

Cost-Efficient Operations

High sorting efficiency reduces operator workload, optimizes staffing, lowers labor costs, and supports business expansion through efficient operations.

Applications

Postal and Express Delivery: Ideal for regional hubs, transfer stations, and large courier facilities with heavy sorting demands. Linear models offer compact, adaptable designs that boost productivity as labor costs rise.

E-Commerce and Global Trade: Perfect for handling peak e-commerce periods, serving sectors like clothing, electronics, supermarkets, and pharmaceuticals with streamlined performance.

Advanced Technology Advantages

Intelligent Vision Systems: Advanced vision technology for live cart monitoring, isolating faulty carts to prevent errors with quick alert notifications.
Enhanced Cart Linkage Technology: Optimized algorithms for flexible cart use - single carts for small items, dual carts for parcels up to 1.2 meters.
Automated Maintenance Management: Interface enables carts to self-navigate to maintenance zones, reducing manual oversight.
Proven Durability: 18 years of logistics automation expertise ensures durable, trusted sorting solutions.
