| Brand Name: | Realkey |
| Model Number: | RKSORT-SWS |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Attribute | Value |
|---|---|
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Breaking the limitation of manual sorting of large and irregular items |
| Applicable Industries | Manufacturing Plant, Warehouse, Logistics companies, Parcel sorting |
| Warranty | 1 Year |
| After-sales Service | 24-hour Customer Service Online |
| Application | logistic, warehouse |

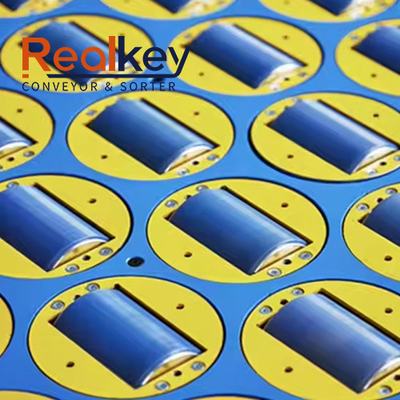

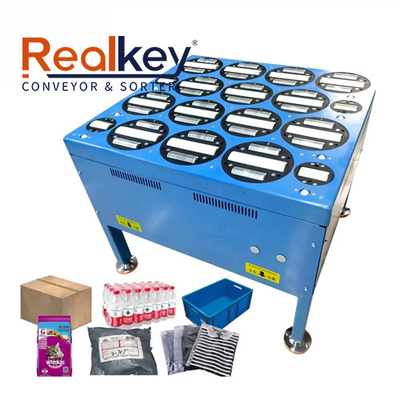

The Realkey Swivel Wheel Sorting Machine, also called the Divert Wheel or Rotating Wheel Sorter, is a robust solution for sorting parcels and cartons in conveyor systems. Built with an electric drum (wheel), a steering mechanism, a control unit, and a solid frame, it propels items via drum rotation. Servo motors and steering modules adjust the drum's angle to guide items left or right.
Handling cartons up to 50kg, waterproof bags, woven bags, and flat-bottomed irregular packages, it sorts at 2m/s, processing 6,000 items per hour. Ideal for postal services, express delivery, e-commerce logistics, and distribution hubs, it delivers top performance.
| Model | SWS-10M | SWS-12H |
|---|---|---|
| Sorted Items | Medium to large parcels, woven bags, flexible packages, etc. | |
| Weight Range | 0.2kg≤M≤50kg | 0.2kg≤M≤50kg |
| Sorting Capacity | 4000 pieces per hour | 6000 pieces per hour |
| Parcel Size Range | MAX:1000*1000*700mm (Example for a 1-meter wide device) MIN:150*150*30mm |
|
| Sorting Success Rate | 99.99% | |
| Sorting Modes | Single-sided sorting / Double-sided sorting | |
| Electric Drum Size | Drum length 85mm * Drum diameter 70mm | |
| Conveying Speed | 1-1.5m/s | 1.2-2m/s |
| Number of Swing Mechanisms | Not less than 2 | Not less than 5 |
| Parcel Spacing | 800mm | 400mm |
| Operating Noise | ≤72dB(A) | |
The swivel wheel sorter optimizes sorting for apparel, books, boxes, and soft packages, ensuring seamless operations. It's widely used in express delivery, logistics centers, and warehouses, sorting parcels quickly and accurately.
In e-commerce, it speeds up order fulfillment, strengthening logistics workflows. In manufacturing, it organizes materials and components, serving industries like healthcare, food processing, and renewable energy with effective sorting.
