Logistic Sorted Machine Parcel Sorting Equipment Dws System Swivel Wheel Sorter

Logistic Sorted Machine Parcel Sorting Equipment Dws System Swivel Wheel Sorter

Brand Name:	Realkey
Model Number:	RKSORT-SWS
MOQ:	1 unit
Price:	Customized products
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Breaking The Limitation Of Manual Sorting Of Large And Irregular Items

Applicable Industries:

Manufacturing Plant, Warehouse, Logistics Companies, Parcel Sorting

Warranty:

1 Year

After-sales Service:

24-hour Customer Service Online

Application:

Logistic,warehouse

Highlight:

DWS Swivel Wheel Sorter

Swivel Wheel Sorter Equipment

Parcel Sorting Swivel Wheel Sorter

Product Description

Logistic Sorted Machine Parcel Sorting Equipment DWS System Swivel Wheel Sorter

Custom Order

OEM/ODM

Factory

Direct Factory With Own Exporting Platform

Feature

Breaking the limitation of manual sorting of large and irregular items

Applicable Industries

Manufacturing Plant, Warehouse, Logistics companies, Parcel sorting

Warranty

1 Year

After-sales Service

24-hour Customer Service Online

Application

logistic, warehouse

Product Overview

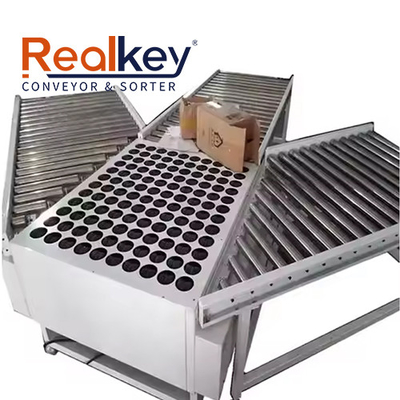

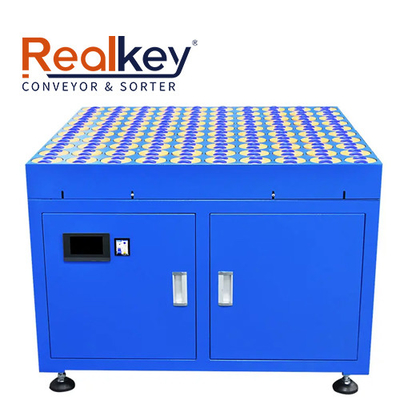

The Realkey Swivel Wheel Sorting Machine, also known as the Divert Wheel or Rotating Wheel Sorter, is a cutting-edge solution for sorting parcels and cartons in conveyor systems. Comprising an electric drum (wheel), a steering system, a control module, and a sturdy frame, it moves items through drum rotation. Servo motors and steering units adjust the drum's direction to divert items left or right.

Technical Parameters

Model	SWS-10M	SWS-12H
Sorted Items	Medium to large parcels, woven bags, flexible packages, etc.
Weight Range	0.2kg≤M≤50kg	0.2kg≤M≤50kg
Sorting Capacity	4000 pieces per hour	6000 pieces per hour
Parcel Size Range	MAX:10001000700mm (Example for a 1-meter wide device) MIN:15015030mm
Sorting Success Rate	99.99%
Sorting Modes	Single-sided sorting / Double-sided sorting
Electric Drum Size	Drum length 85mm * Drum diameter 70mm
Conveying Speed	1-1.5m/s	1.2-2m/s
Number of Swing Mechanisms	Not less than 2	Not less than 5
Parcel Spacing	800mm	400mm
Operating Noise	≤72dB(A)

Product Features

Versatility: With a flat surface of rubber-coated electric rollers, the sorter ensures wide, flexible contact, enabling precise sorting of varied items like apparel, books, cartons, and soft packages with efficiency.

Efficient Sorting: Powered by electric rollers, it offers high load capacity, quiet performance, and rapid operation. By simplifying traditional mechanisms, it boosts productivity, achieving 6,000 items per hour, ideal for high-demand logistics environments.

Compact Structure: Its straightforward, stable design reduces failure rates. Articulated bearings connect steering components, allowing fine-tuned angle adjustments. Servo motors provide swift, responsive steering, with independent modules requiring minimal sorting signals.

Quick Installation and Removal: The sorter's single-group swing wheel and single-row modules use a modular design, detaching easily from transmission parts for quick assembly and simple maintenance.

Applications

The swivel wheel sorter streamlines sorting for clothing, books, boxes, and soft packages, ensuring smooth workflows. It's a key asset in:

Express delivery and logistics hubs

Warehouses and distribution centers

E-commerce order processing

Manufacturing material organization

Healthcare, food processing, and renewable energy sectors

Key Advantages

Advanced Technology: Smart control system with sensors to manage start-stop functions based on package arrival, optimizing energy use. Servo-driven sorting delivers fast, accurate angle control.

Precision Manufacturing: CNC-machined parts and meticulous assembly guarantee high accuracy, durability, low noise, and reduced maintenance.

Safety and Stability: Designed for robustness with advanced industry standard safety features throughout.

Reliability: 18 years of logistics automation expertise ensures durable, dependable sorting solutions.
