Disk Balance Wheel Electric Rotary Sorter Applicable To E-commerce High Quality High-speed Steerable Wheel Sorter

Disk Balance Wheel Electric Rotary Sorter Applicable To E-commerce High Quality High-speed Steerable Wheel Sorter

Brand Name:	Realkey
Model Number:	RKSORT-SWS
MOQ:	1 unit
Price:	Customized products
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Breaking The Limitation Of Manual Sorting Of Large And Irregular Items

Applicable Industries:

Manufacturing Plant, Warehouse, Logistics Companies, Parcel Sorting

Warranty:

1 Year

Highlight:

Disk Balance Wheel Sorter

High-speed Steerable Wheel Sorter

Electric Rotary Sorter

Product Description

Disk Balance Wheel Electric Rotary Sorter

A high-quality, high-speed steerable wheel sorter designed for e-commerce and industrial applications, capable of handling diverse parcel types with exceptional efficiency.

Product Attributes

Custom Order	Accepted
OEM/ODM	Accepted
Factory	Direct Factory With Own Exporting Platform
Feature	Breaks the limitation of manual sorting for large and irregular items
Applicable Industries	Manufacturing Plant, Warehouse, Logistics companies, Parcel sorting
Warranty	1 Year

Product Description

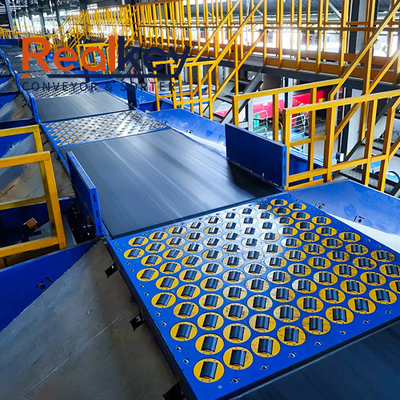

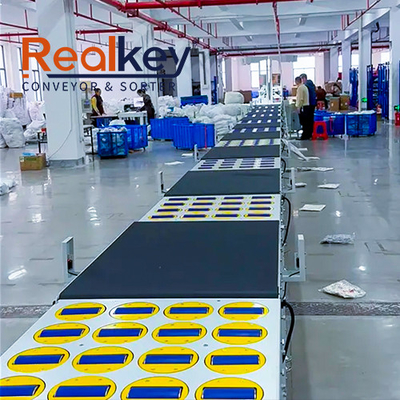

The Realkey Swivel Wheel Sorting Machine is a robust solution for sorting parcels and cartons in conveyor systems. Comprising an electric drum, steering system, control module, and sturdy frame, it efficiently moves items via drum rotation with servo-controlled angle adjustments for precise left/right sorting.

Technical Parameters

Model	SWS-10M	SWS-12H
Sorted Items	Medium to large parcels, woven bags, flexible packages
Weight Range	0.2kg≤M≤50kg
Sorting Capacity	4000 pieces/hour	6000 pieces/hour
Parcel Size Range	MAX:10001000700mm (Example for 1-meter wide device) MIN:15015030mm
Sorting Success Rate	99.99%
Sorting Modes	Single-sided sorting / Double-sided sorting
Electric Drum Size	Drum length 85mm * Drum diameter 70mm
Conveying Speed	1-1.5m/s	1.2-2m/s
Number of Swing Mechanisms	Not less than 2	Not less than 5
Parcel Spacing	800mm	400mm
Operating Noise	≤72dB(A)

Product Features

Versatility

Features a flat sorting surface with multiple rubber-coated electric rollers for broad, flexible contact with items. Effectively sorts diverse parcels including apparel, books, cartons, and soft packages.

Efficient Sorting

High load capacity with minimal noise and swift operation. Simplified mechanisms boost efficiency to 6,000 items per hour, ideal for high-volume logistics.

Compact Structure

Straightforward, stable design with low failure rate. Articulated bearings enable precise angle adjustments via servo motors for responsive steering.

Quick Installation

Standardized modular design allows easy detachment of conveying units for fast assembly and maintenance.

Applications

Provides efficient sorting for clothing, books, boxes, and soft packages in express delivery, logistics hubs, and warehouses. Streamlines e-commerce order processing and organizes manufacturing components for industries including healthcare, food processing, and renewable energy.

Advantages

Advanced Technology: Smart control system with sensors optimizes energy use. Servo-driven sorting ensures quick responses and precise angle control.
Precision Manufacturing: CNC-machined components ensure high accuracy, durability, and low maintenance.
Safety and Stability: Meets advanced industry standards with comprehensive safety features.
Reliability: Backed by 18 years of logistics automation expertise for proven, durable performance.
