Customized Length Box Roller Conveyor Logistics Conveyor Systems Low Maintenance

Name: Customized Length Box Roller Conveyor Logistics Conveyor Systems Low Maintenance
Brand: QINGDAO REALKEY MACHINERY CO.， LTD
SKU: RKCONV-RC
Availability: InStock

Brand Name:	Realkey
Model Number:	RKCONV-RC
MOQ:	1 unit
Price:	Customized products
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Applicable To A Variety Of Industrial Fields, To Meet Different Production Environments And Needs

Highlight:

customized length Box Roller Conveyor

customized length Logistics Conveyor Systems

Low Maintenance Logistics Conveyor Systems

Product Description

Customized Length Box Roller Conveyor Logistics Conveyor Systems

Key Features

Low maintenance costs with enhanced sorting accuracy
Available in powered and gravity roller configurations
Modular design for easy installation and expansion
Energy-efficient operation with high load capacity
Customizable to specific production requirements

Product Attributes

Custom Order	Accepted
OEM/ODM	Accepted
Factory	Direct Factory With Own Exporting Platform
Feature	Applicable to various industrial fields, meeting different production environments and needs

Product Description

The Realkey Roller Conveyor (RKCONV-RC) system offers reliable material handling solutions with two operational variants: powered roller conveyors and gravity roller conveyors. These systems enable seamless integration with other conveyor types and specialized machinery to create comprehensive automated logistics solutions.

Technical Specifications

Parameter	Specification
Model	RKCONV-RC-38/50/60/76/89
Length	Customizable
Effective Width	400/600/800/1000/1200(mm)
Roller Diameter	38/50/60/76/89(mm)
Roller Center Distance	60/90/120/150(mm)
Roller Material	Carbon Steel (Galvanized)/Stainless Steel
Transmission Mode	Chain/Multi-Wedge Belt/O-Belt
Conveying Type	Flat/Turning/Centering/Side/Accumulation/Merging
Drive Type	Non-powered/Reduction Motor/Friction Belt/Electric Roller
Operating Speed	0.1~2.0(m/s)
Maximum Load	50(kg/㎡)
Operating Temperature	-20~40(℃)
Operating Voltage	No power source/Three-phase five-wire 380V/Single-phase 220V
Additional Equipment	Configurable with side guards, photoelectric switches, foot switches, stoppers, etc.

System Advantages

Flexible Configuration: Customizable roller diameter, spacing, length, and drive types
Modular Design: Easy installation, maintenance, and expansion capabilities
Energy Efficient: Optimized power consumption with gravity-assisted operation
High Capacity: Handles weights from small components to large packages
User-Friendly: Automated operation with minimal manual intervention
Safety Compliant: Includes emergency stop buttons and protective barriers

Industry Applications

Manufacturing: Automated parts movement on production lines
Logistics Centers: Rapid package sorting and transportation
E-commerce Warehouses: Efficient order processing and goods movement
Food & Pharmaceutical: Hygienic material handling for sensitive products

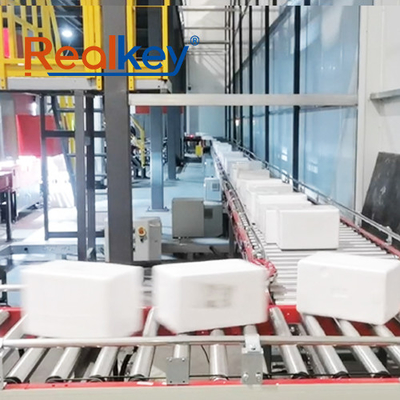

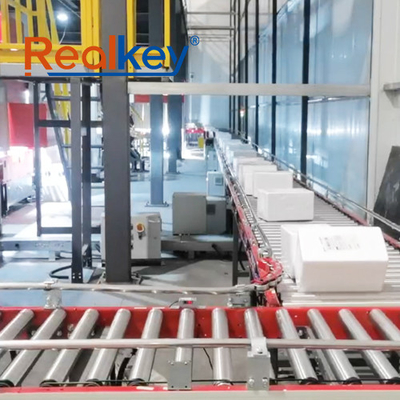

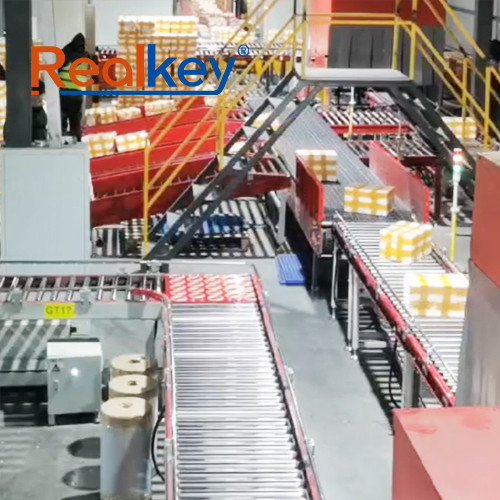

Product Images

With over 17 years of expertise in logistics conveyance, Realkey's RKCONV products are recognized for their strength, reliability, and cost-effective maintenance. Our systems provide tailored solutions with future-ready scalability to meet evolving production demands.
