Easy Integration Automated Warehouse Conveyor Systems For Manufacturing Industry

Name: Easy Integration Automated Warehouse Conveyor Systems For Manufacturing Industry
Brand: QINGDAO REALKEY MACHINERY CO.， LTD
SKU: RKCONV-RC
Availability: InStock

Brand Name:	Realkey
Model Number:	RKCONV-RC
MOQ:	1 unit
Price:	Customized products
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Applicable To A Variety Of Industrial Fields, To Meet Different Production Environments And Needs

Highlight:

Easy Integration Warehouse Conveyor Systems

Easy Integration warehouse roller conveyors

Manufacturing Industry Warehouse Conveyor Systems

Product Description

Easy Integration Automated Warehouse Conveyor Systems For Manufacturing Industry

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Applicable to a variety of industrial fields, to meet different production environments and needs

Easy Integration Roller Conveyor System Low Maintenance Costs

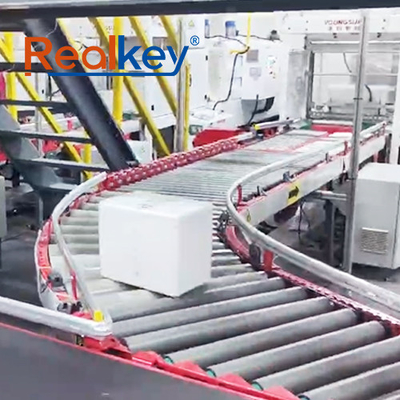

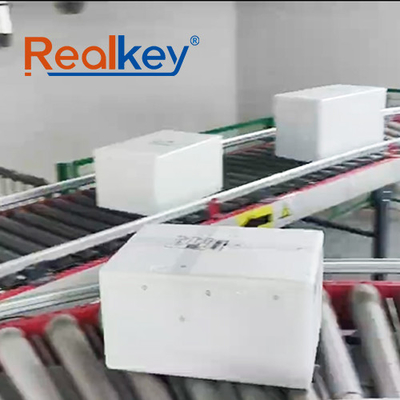

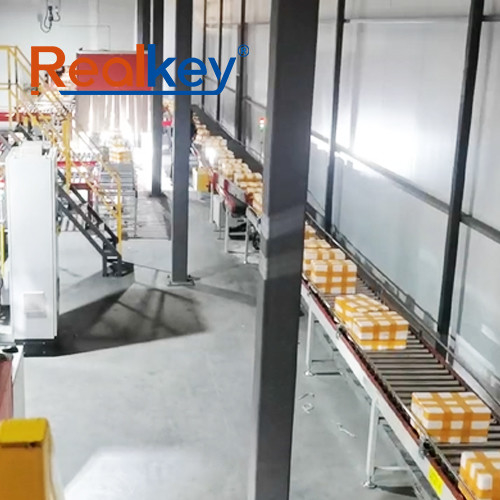

The Realkey Roller Conveyor (RKCONV-RC) is distinguished into powered roller conveyors and gravity roller conveyors, depending on their operational mechanisms. These conveyor lines offer seamless connections and transitions, enabling the development of intricate automated logistics systems when combined with various roller conveyor lines and other conveyor types or specialized equipment.

The RKCONV Roller Conveyors comprise driving rollers, free rollers, frames, and a control system. Their structure is simple yet reliable, making them easy to operate and maintain. They are designed to transport a wide range of items, including boxes, bags, and pallets. For bulk materials, small items, or irregular shapes, these must be placed in containers or on pallets for effective transport.

Technical Parameters

Content	Technical Parameters
Model	RKCONV-RC-38/50/60/76/89
Length	Customizable
Effective Width	400/600/800/1000/1200(mm)
Roller Diameter	38/50/60/76/89(mm)
Roller Center Distance	60/90/120/150(mm)
Roller Material	Carbon Steel (Galvanized)/Stainless Steel
Transmission Mode	Chain/Multi-Wedge Belt/O-Belt
Conveying Type	Flat/Turning/Centering/Side/Accumulation/Merging
Drive Type	Non-powered/Reduction Motor/Friction Belt/Electric Roller
Operating Speed	0.1~2.0(m/s)
Maximum Load	50(kg/㎡)
Operating Temperature	-20~40(℃)
Operating Voltage	No power source/Three-phase five-wire 380V/Single-phase 220V
Additional Equipment	Configurable with side guards, photoelectric switches, foot switches, stoppers, etc.

Product Features

Flexibility: The roller conveyor system can be customized to suit specific production line requirements, including roller diameter, spacing, length, and driving mechanisms.
Modular Design: Featuring a modular architecture, the system is easy to install, maintain, and expand, making it adaptable to rapidly changing production needs.
Energy Efficiency: Powered rollers utilize energy-efficient electric motors, while gravity rollers leverage gravitational force and item momentum, resulting in lower energy costs.
High Load Capacity: This conveyor system can handle a variety of weights, making it suitable for the transportation of small components, bins, and larger goods.
Ease of Operation: The control system is designed for user-friendliness, facilitating automated control and minimizing manual intervention.

Application

Manufacturing Industry: Ideal for automating the conveyance of parts along production lines, thus increasing efficiency and reducing labor costs.
Logistics Centers: Utilized in courier and logistics centers for quick sorting and transportation of parcels, improving operational speed and sorting accuracy.
E-commerce Warehouses: Effective for managing high volumes of order picking in e-commerce environments, speeding up the movement and sorting of goods.
Food and Pharmaceutical Industries: Suitable for sectors with strict hygiene standards, ensuring cleanliness and safety during material handling.

Advantages

Efficient Conveyance: Provides high efficiency and stable material transport during continuous operations.
Mature Technology: Employs established technology to ensure reliability and durability.
Automation Integration: Easily integrates with other automated systems for streamlined control.
Low Maintenance Costs: Modular design and high-quality materials result in relatively low maintenance.
Customized Service: Offers tailored design solutions based on specific conveying needs.
Strong Scalability: Designed to accommodate future growth and increased production demands.
Safety Assurance: Equipped with safety features like emergency stop buttons and protective barriers.
High Reliability: With 17 years of industry experience, RKCONV products are recognized for robustness and longevity.

For more information about the Realkey Roller Conveyor (RKCONV-RC), please contact Realkey customer service representatives directly.
