Tilt Tray Sorter
Created with Pixso.

Automated Classification Tilt Tray Package Sorting Machine Automatic Identification System

Name

Automated Classification Tilt Tray Package Sorting Machine Automatic Identification System

Brand Name: Realkey
Model Number: RKSORT-TTS
MOQ: 1 unit
Price: Customized products
Payment Terms: L/C,T/T,D/P
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE/EAC/UL/ISO
Custom Order:
Accept
OEM/ODM:
Accept
Fatory:
Direct Factory With Own Exporting Platform
Feature:
Breaking The Traditional Manual Sorting Mode Of Special-Shaped Parts
Highlight:

Automated Classification package sorting machine

,

Automated Classification package sorting system

,

Automatic Identification package sorting machine

Product Description
Automated Classification Tilt Tray Package Sorting Machine Automatic Identification System
Custom Order: Accept
OEM/ODM: Accept
Factory: Direct Factory With Own Exporting Platform
Feature: Breaking The Traditional Manual Sorting Mode Of Special-Shaped Parts
Product Overview

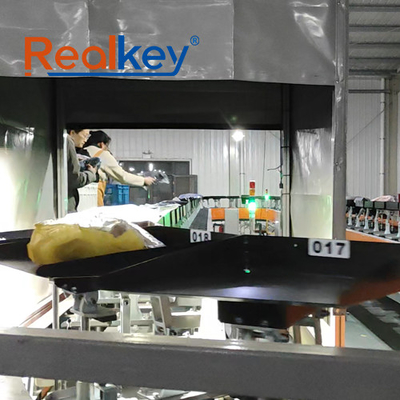

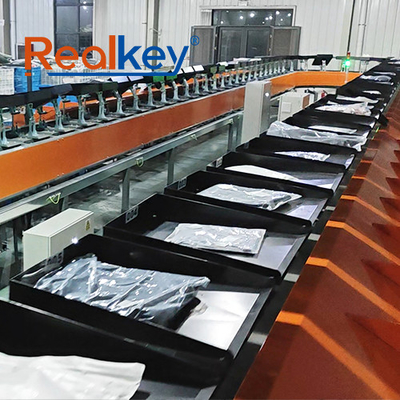

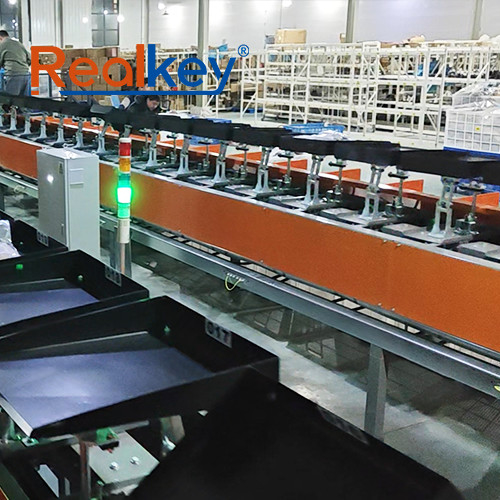

The Realkey Tilt Tray Sorter is an economical and efficient idx自动化分拣解决方案 designed for small to medium-sized packages. This innovative system revolutionizes package handling through its horizontal continuous conveying mechanism.

System Components

The complete sorting system includes:

  • Tray carriers for secure item transport
  • Advanced conveying devices
  • Precision tilting mechanisms
  • Automated identification systems
  • Intelligent control systems
  • Durable track frames
Technical Specifications
Parameter TTS-500SP TTS-500DE
Sorted Items Small packages, envelopes, clothing, footwear, pharmaceuticals
Weight Range 0.01kg ≤ M ≤ 15kg 0.01kg ≤ M ≤ 5kg
Size Range MAX:400×400×600mm
MIN:50×50×2mm		 MAX:400×400×500mm
MIN:50×50×2mm
Sorting Capacity 7,200-10,800 items/hour
Sorting Accuracy 99.90%
Supply Options Manual/Automatic, Single/Double-sided, Single/Double-ended
Loop Line Speed Manual: 1.0-1.5m/s
Automatic: 1.0-2.0m/s
Pitch 500mm
Power Consumption 5.5KW/50 trays
Industry Applications

This automated sorting solution serves multiple sectors including:

  • Postal and courier services
  • E-commerce fulfillment centers
  • Apparel and footwear distribution
  • Pharmaceutical logistics
  • Fresh produce handling
  • Jewelry and small item processing
Key Advantages
Heavy-Duty Tray Option

Engineered for demanding postal applications with 15kg weight capacity per tray.

Customizable Tray Design

Specialized V-shaped trays available for cylindrical items and other custom configurations.

Safety-First Design

Rounded edges and protective features ensure operator safety during sorting operations.

Proven Reliability

17 years of logistics automation expertise ensures durable, dependable performance.

Automated Classification Tilt Tray Package Sorting Machine Automatic Identification System 0 Automated Classification Tilt Tray Package Sorting Machine Automatic Identification System 1
