Realkey Cross Belt Sorter Intelligent Recognition & Fully Automated Sorting

Realkey Cross Belt Sorter Intelligent Recognition & Fully Automated Sorting

Brand Name:	Realkey
Model Number:	Circular Cross Belt Sorter
MOQ:	1
Price:	The customized products need to be based on the specified plan.
Payment Terms:	L/C,T/T,D/P
Supply Ability:	The customized products need to be based on the specified plan.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE EAC UL ISO

Cart Pitch:

600mm

Sorting Accuracy:

99.99%

Operating Noise:

≤72dB（A）

Sorted Goods Weight:

0.03kg≤W≤20kg

Operating Speed:

2.0m/s

Sorting Efficiency:

22000 Pieces Per Hour

Packaging Details:

The customized products need to be based on the specified plan.

Product Description

Realkey Cross Belt Sorter Intelligent Recognition & Fully Automated Sorting

Realkey's Cross Belt Sorter (Realkey-CBS) is a cutting-edge solution engineered for high-speed, intelligent sorting of parcels, cartons, and diverse package types. Featuring advanced recognition algorithms and a highly automated architecture, it’s built to meet the demands of modern logistics operations requiring precision, speed, and adaptability.

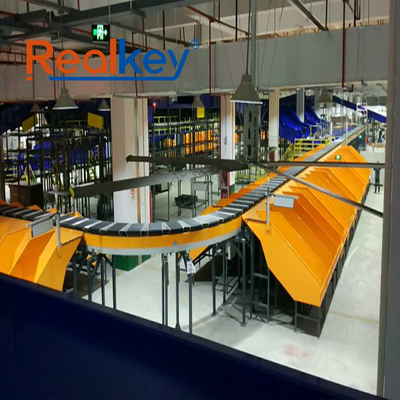

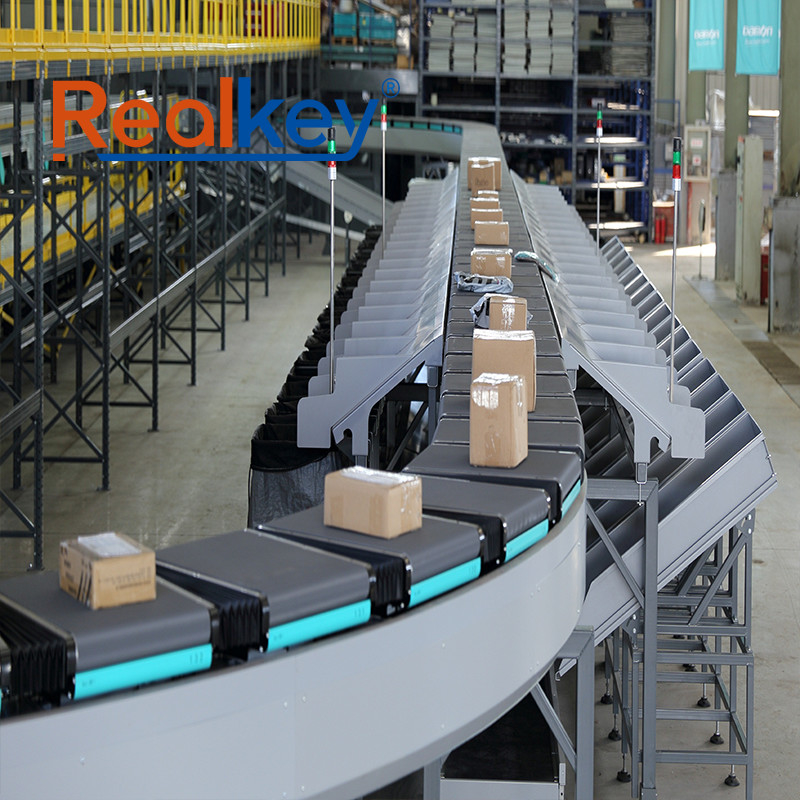

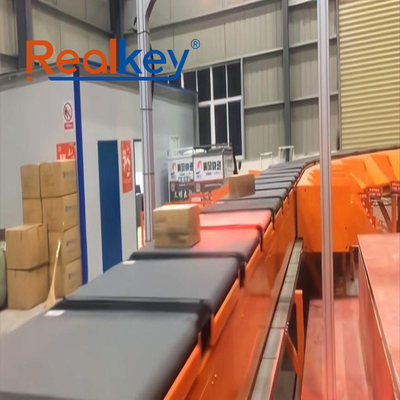

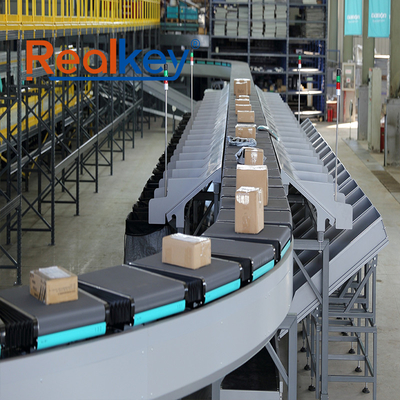

The system is composed of motorized carts, cart-mounted conveyor belts, and a continuous track system that guides items to their correct destinations. The name "Cross Belt" comes from the perpendicular movement between the cart and the belts. As carts reach designated chutes, the system activates the belts to gently and accurately discharge items.

Technical Parameters

Equipment Name	Circular Cross Belt Sorter(CBS - 600C)	Linear Cross Belt Sorter
Model	CBS - 600C	CBS - 500L	CBS - 300L
Sorted Items	Various parcels, cartons, clothing, books, etc.
Cart Pitch	600mm	500mm	300mm
Sorting Accuracy	99.99%
Sorting Efficiency	22000 pieces per hour	6000 pieces per hour	8000 pieces per hour
Feeding Method	Manual loading / Automatic loading from feeding station
Sorted Goods Size	MAX: 700600500mm; MIN: 1501508mm
Scanning Method	Top scan / Three - phase five - sided scan / Six - sided scan
Sorted Goods Weight	0.03kg ≤ W ≤ 20kg	0.03kg ≤ W ≤ 20kg	0.1kg ≤ W ≤ 30kg
Operating Speed	2.0m/s	1.5m/s	1.5m/s
Operating Noise	≤72dB (A)
