Telescopic Belt Conveyor Adjustable Length Angle for Loading Unloading

Name: Telescopic Belt Conveyor Adjustable Length Angle for Loading Unloading
Brand: QINGDAO REALKEY MACHINERY CO.， LTD
SKU: RKLOAD-TBC
Price: 10000 USD
Availability: InStock

Brand Name:	Realkey
Model Number:	RKLOAD-TBC
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Flexibly Adjustable In Length And Angle, This Design Suits Various Transportation Scenarios.

Highlight:

Safe Operation Telescoping Conveyor Systems

Adjustable Length Telescoping Conveyor Systems

Adjustable Length telescoping belt conveyor

Product Description

Safe Operation Telescoping Conveyor Systems Adjustable Length Angle Adjustment

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Flexibly adjustable in length and angle, this design suits various transportation scenarios.

Safe Operation Telescopic Belt Conveyor Adjustable Length Angle Adjustment

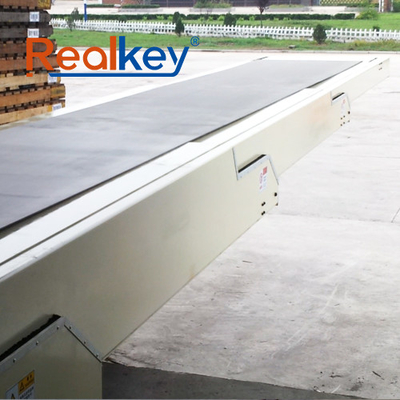

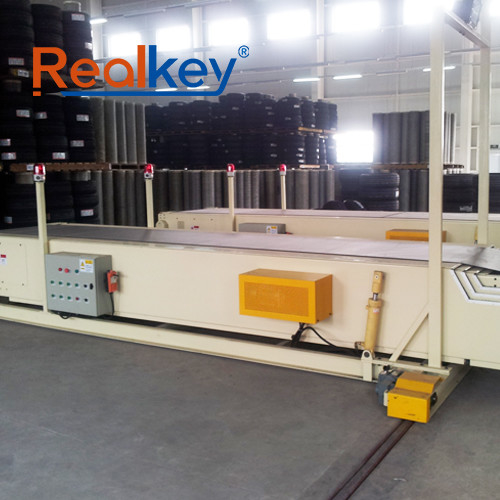

The Realkey telescopic belt conveyor (RKLOAD-TBC), known as an extendable or retractable belt conveyor, is a cutting-edge solution engineered for optimal loading and unloading efficiency. Its design features fixed segments, several extendable sections, robust support frames, and advanced control systems.

This conveyor allows for flexible length adjustments within defined limits and can also include a hydraulic system for angle modifications, ensuring effective bidirectional operation during loading and unloading tasks.

The extendable sections of the RKLOAD-TBC can reach deep into a vehicle's cargo area, significantly reducing the distance goods must be manually handled. This functionality enhances the loading and unloading workflow, decreases handling times, reduces physical strain on workers, minimizes the risk of product damage, and lowers overall loading and unloading costs, ultimately boosting productivity.

The RKLOAD-TBC is widely utilized across various industries, including postal services, express delivery, food processing, tobacco, pharmaceuticals, and consumer goods.

Technical Parameters

Model	Sections	Fixed Section Length(mm)	Extended Section Length(mm)	Total Length(mm)	Characteristic
TBC2-5+3	Two	5000	3000	8000	Belt Width (mm): 400/600/800/900/1000 Belt Material: PVC/PVK/Composite Belt Operating Speed: 0.2~0.6 (m/s) Maximum Load: 60 (kg/m²) Ambient Temperature: -20~40 (℃) Ambient Voltage: Three-phase five-wire 380V Hydraulic Lift: Optional OEM/ODM: Customized design and manufacturing according to customer requirements are supported.
TBC2-7+5		7000	5000	12000
TBC3-5+6	Three	5000	6000	11000
TBC3-6+8		6000	8000	14000
TBC3-7+9.5		7000	9500	16500
TBC4-4+6	Four	4000	6000	10000
TBC4-5+9		5000	9000	14000
TBC4-6+12		6000	12000	18000
TBC4-7+14		7000	14000	21000
TBC5-6+14	Five	6000	14000	20000
TBC5-7+17		7000	17000	24000

Product Features

Cost Efficiency and Enhanced Productivity: Streamlines loading/unloading process, reducing labor intensity and cutting loading times by up to 50%.
Safe and Smooth Handling: Minimizes goods handling frequency, reducing product damage and associated losses.
User-Friendly Operation: Intuitive interface for straightforward control of telescopic functions and conveyor speed.
Simple Maintenance: Innovative technology and modular design ensure easy maintenance and long service life.

Application

The RKLOAD-TBC has proven its effectiveness across various sectors due to its adaptability and efficiency, making it essential for improving material handling and operational workflows.

Loading and Unloading Zones: Ideal for rapid transfers of goods between trucks and storage areas.
Warehouse Operations: Effective for short-distance material movement within warehouses.
Logistics Hubs: Works seamlessly with automated sorting systems for package transportation.
Postal Services: Facilitates swift handling and sorting of letters and parcels.
Food Industry: Perfect for hygienic transport of raw materials and finished products.

Advantages

Versatile Options: Wide variety of models including fixed, track-mounted, and free-moving conveyors.
Safety Prioritization: Designed with operator safety in mind, incorporating multiple protective features.
Tailored Solutions: Customized design and manufacturing services available.
Proven Reliability: 17 years of experience in logistics conveying industry ensures durable and dependable products.
